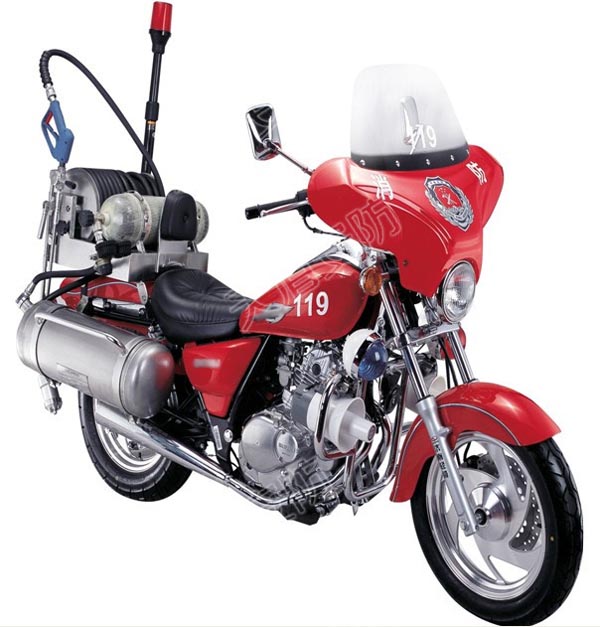

Introduction Of TR250 Fire-Fighting Motorcycle

Date:2022-04-06     Label：

Fire-Fighting Motorcycle

Rescue Equipment

Fire-Fighting Motorcycle Parameters

Fire fighting motorcycle is an convenient, swift and flexible vehicle; In which extinguishing device plays an effect of extinguishing fire in fire field. Fire fighting motorcycle is also a very important rescue equipment for protecting people's life and enterprise property. It is applied to the place like narrow lane, container ports, troops, airports, highways, traffic, the dense city streets etc. It has the characteristics of convenience, efficience, water conservation, environmental protection suitable for car fire, room fire, oil fire etc.

Fire-Fighting Motorcycle Parameters Technical Data:
Name Specification Name Specification
Bulk Range (water mist/foam)
12-16m Spraying time 90 s

Fire-Fighting Motorcycle Parameter Diameter:
<400μ M Extinguishing agent/water mixing ratio 3 -- 6 %
Flow rate 22-23 ± 3 L/S
Foam type AFFF-AR (according to customer''''s requirements)
Working pressure 20 bar Expansion rate 1: 5
Storage liquid quantiy 2× 20 L Hose 30m

Fire class 43A 233B
