Hydraulic Door Opener

Date:2016-01-29 Label：

hydraulic door spreader

1-Hydraulic Door Opener Material: Base angle taken use of special steel manufactured. Can provide great opening force; 2-Function: Open Door & Gate etc. when emergency happened;

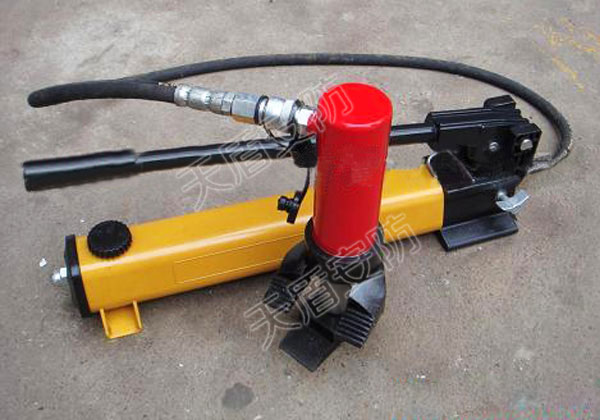

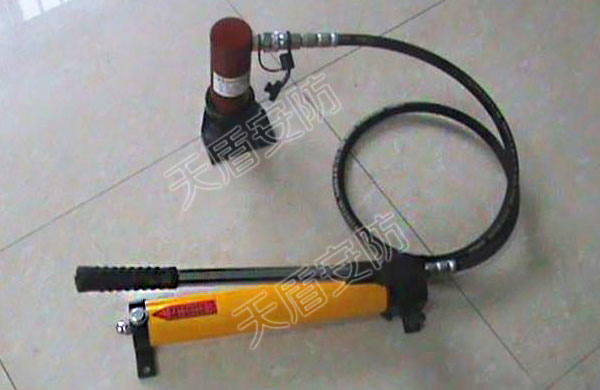

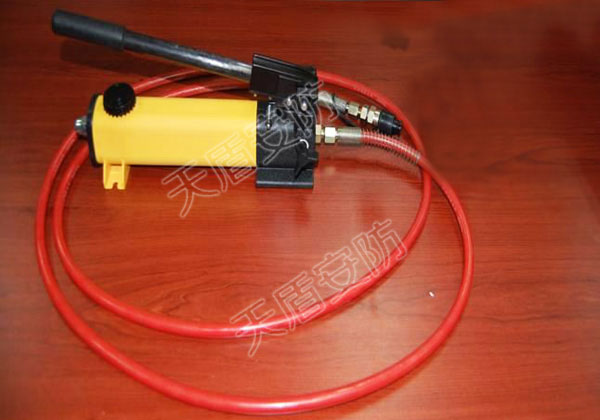

Hydraulic Door Opener

Introduction

Introduction of Hydraulic Door Opener

1-Hydraulic Door Opener Material: Base angle taken use of special steel manufactured. Can provide great opening force;
2-Function: Open Door & Gate etc. when emergency happened;
3-Applications:accident rescue, especially suitable for residential and commercial buildings, hotels & fire rescue to open the locked door in time.

Features of Portable Firefighting Hydraulic Door Opener

1. Provides 10 tons collapsing force for opening the door; working with both big and small manual pump with self-locking functions;
2. Safe to work in the explosive place, no spark during operation;
3. Mini sized, easy to bring, can be stored in the metal cabinet, implementing rapid mobility aid.

Parameter of Hydraulic Door Opener

Model	ZM-130/100
Rated Working Pressure	63MPa(630bar/9135PSI)
Max. Opening Force	100KN(10Tons/22477Lbs)
Closing Length	≤228mm
Opening Height	120mm
Times of Hand Pump Beating When Start without Load	≤20times
Closing Time Without Load(Free Fall)	≤50s
Weight	≤5.5kg
Dimension(LWH)	122100228mm
