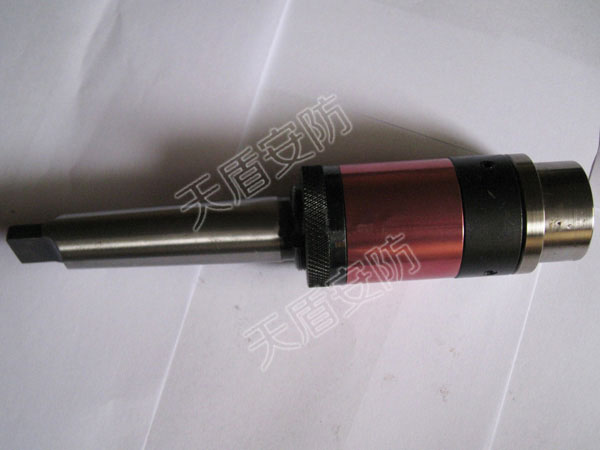

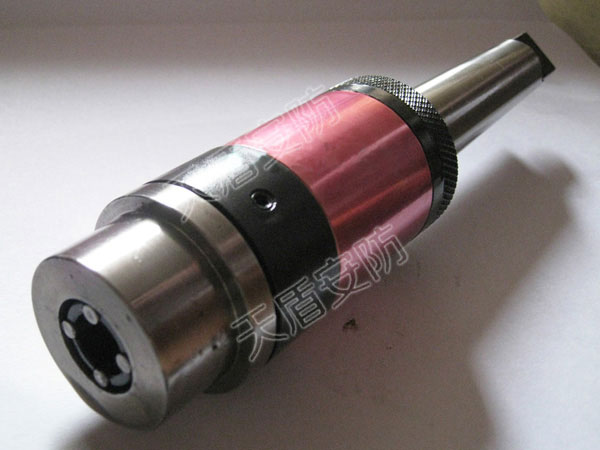

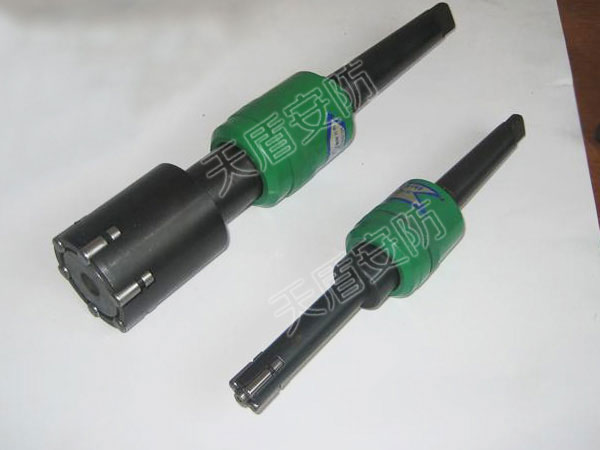

Rolling Tools is small size; easy to operate; long-term use; maintenance costs low.
Rolling tool operation method
Rolling tool adjustment:
(1) Measure the tool tip diameter with a micrometer.
(2) the aluminum shell to push up, left and right rotation, you can adjust the tool diameter required, each grid scale value of 0.0025 mm.
Rolling tool use:
(1) The tool can be mounted on the tailstock of the lathe, the turret, the workpiece rotation, the tool does not move for processing, or installation of milling machine, boring machine, drilling machine, machining center machine spindle.
(2) tools and workpieces must be on the same axis, so as not to affect the tool life.
(3) the machine spindle should turn right.
(4) the workpiece is finished, the tool continues to rotate and automatically reduce the diameter, without damage to the processing surface exit.
