The PSY Series Portable Firefighting Water Monitor is a new fire-fighting equipment with advanced level and multi-function . It has small size, light weight and it is foldable.
Contact Us Product Center

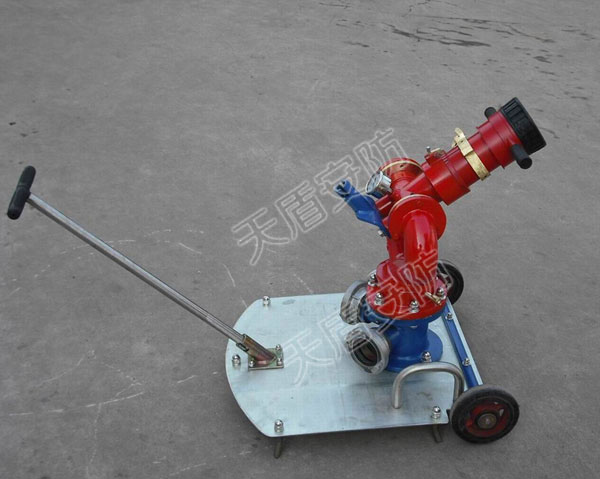

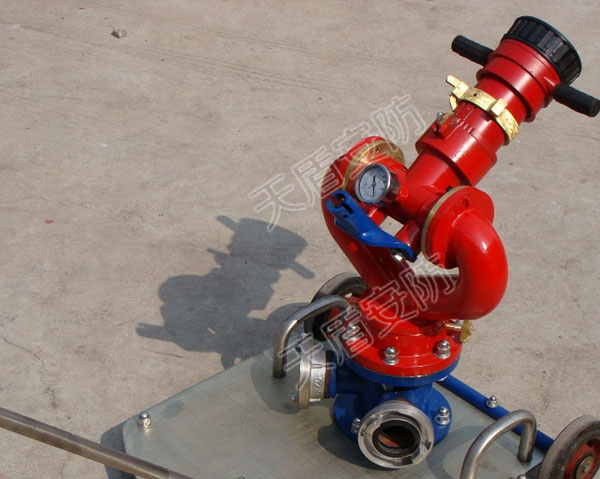

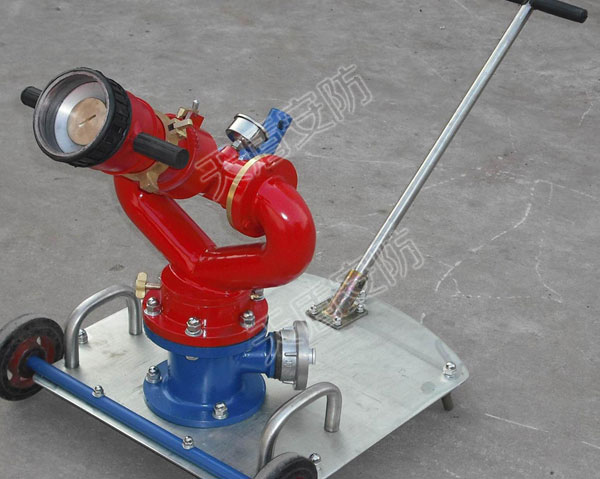

The PSY Series Portable Firefighting Water Monitor is a new fire-fighting equipment with advanced level and multi-function . It has small size, light weight and it is foldable. It is designed with perfect features and high reliability and easy to operate at the same time. It is often equipped on fire trucks and fire boats and widely used in oil industrial, wharf and marine.
The nozzle of the PSY Series Portable Firefighting Water Monitor was made as the deflector theory, making it has concentrated jet flow, big flow, long range and multi-function.
1, PSY Series Portable Firefighting Water Monitorcan either be current spray or mist spray that controlled by a knob.
2, Easy to operate and the barrel can either rotate or fasten.
3, Flow can be adjusted from 20~50L/S as demands.
4, The horizontal angle and pitch angle can be changed to fit different fire disaster.
|
Model |
Rated working pressure (Mpa) |
Working pressure range (Mpa) |
Rated Flow (L/s) |
Biggest range (m) |
Pitch Angle (Degree) |
Horizontal Angle (Degree) |
Spray Angle (Degree) |
|
PSY20 |
0.8 |
0.5-1.2 |
20 |
≥45 |
30-70 |
360 |
110 |
|
PSY25 |
25 |
≥50 |
|||||
|
PSY30 |
30 |
≥55 |
|||||
|
PSY40 |
40 |
≥60 |
|||||
|
PSY50 |
50 |
≥70 |
