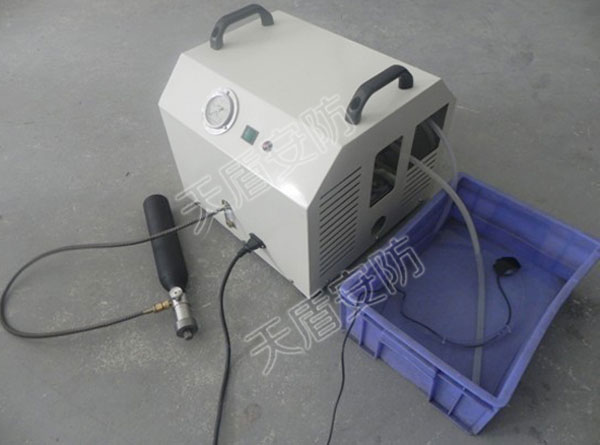

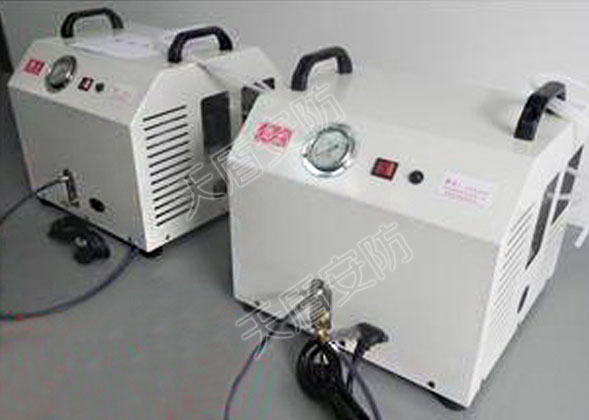

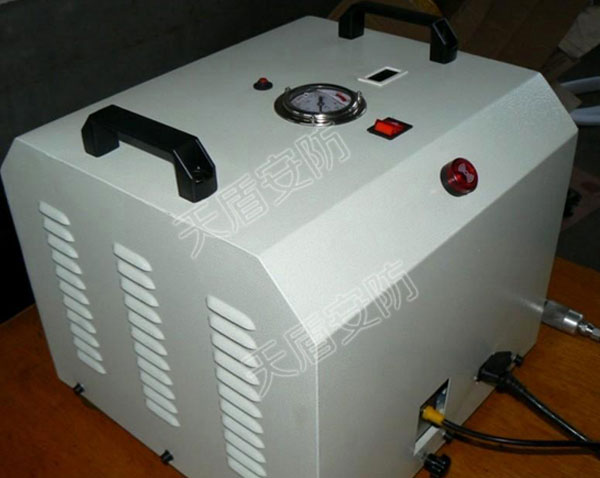

Water Cooling Air Compressor series pressure compressors, there are three separated cylinders, with oil splash lubrication and water cooling.
Contact Us Product Center
Water Cooling Air Compressor series pressure compressors, there are three separated cylinders, with oil splash lubrication and water cooling.
Air through the air filter into 1st stage cylinder, compressed the air pressure to 6 bar, after the compressed air through condensation, air enter the 2nd stage cylinder, and the pressure reach to 38 bar, then through the second condensation, air enter into the condensate separator, and then the air enter the 3rd stage cylinder, at this stage, the air pressure is 300 bar, then the compressed air go through condensation and molecular sieve active carbon filter, the clean air will be discharged through the inflatable tube.
| Model | GYB / 110-30MPa |
| Series | 4stage |
| Number of cylinders | 4 |
| Maximum working pressure | 330bar |
| Net displacement (F.A.D) | 1101 / min |
| Motor power | 3kW |
| Voltage | 380-400V |
| Frequency | 50 Hz |
| Noise | 80.7dB (A) |
| Dimensions | 640 x 880 x 480mm |
| Weight | 40Kg. |
| Model | GYB / 215-30MPa |
| Series | 3stage |
| Number of cylinders | 3 |
| Maximum working pressure | 350bar |
| Net displacement (F.A.D) | 2151 / min |
| Motor power | 4kW |
| Voltage | 380-400V |
| Frequency | 50 Hz |
| Noise | 82.3dB (A) |
| Dimensions | 640 x 880 x 480mm |
| Weight | 116.8 Kg. |
