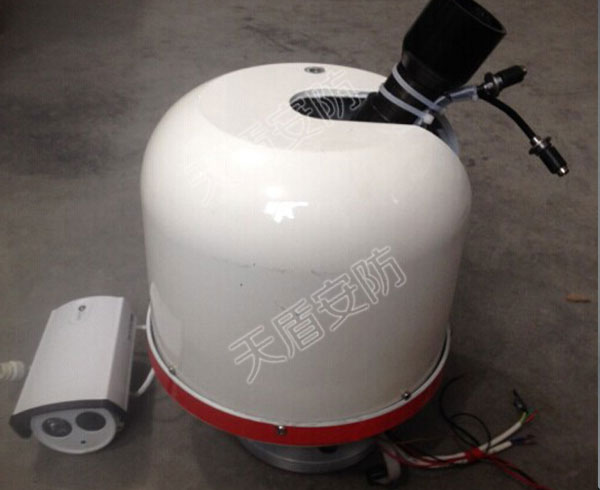

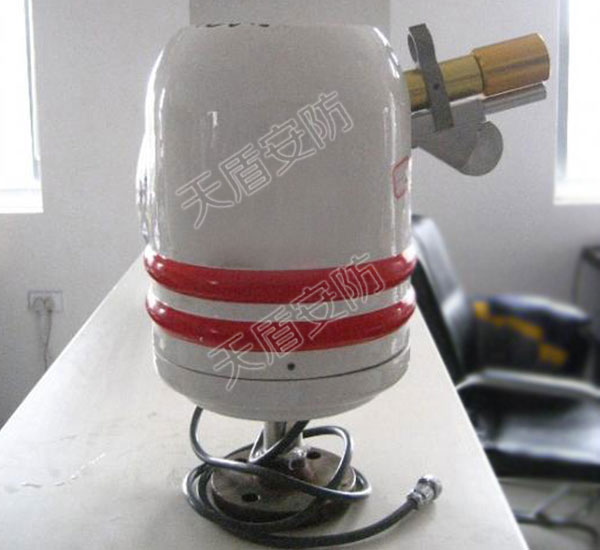

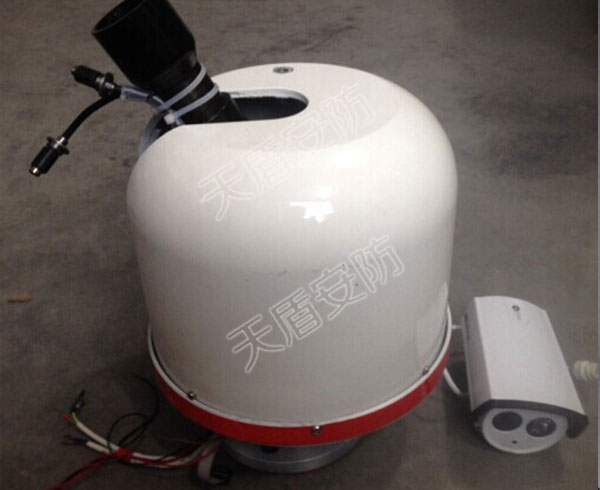

35m Electric Water Cannon Monitor using dual band infrared and ultraviolet composite detection technology, find the fire early, high accuracy, wide range, without blind spots;
Contact Us Product Center35m Electric Water Cannon Monitor using dual band infrared and ultraviolet composite detection technology, find the fire early, high accuracy, wide range, without blind spots;
The position of the fire source can be fixed point and the positioning of the water spray fire extinguishing, and the efficiency of the early fire is high;
In fire scene, through 485 bus can manual control the water jetting direction of fire extinguish device nozzle
35m Electric Water Cannon Monitor adapted bus system image transmission technology,combined with the field of color image signal remote manual control;
Meet the requirements of the national standard manual, automatic and remote manual control of the three ways;
Bus communication, less material consumption, convenient construction, maintenance is simple and convenient;
Secondary search, no reset, greatly shortens extinguishing time
Can receive any other manufacturers’ fire automatic alarm system linkage signal;
35m Electric Water Cannon Monitor has light weight, compact in shape, generous and beautiful.
|
Radius of Protection |
35m |
|
Water Jetting Flow |
10L/s |
|
Overall dimensions (LXWXH) |
400mmx380mmx450mm |
|
Weight |
9KG |
|
Interface diameter |
DN32 |
|
Installation height |
4-30m |
|
Rated working pressure |
0.6Mpa |
|
Max. Working pressure |
1.0Mpa |
|
Voltage/Power |
AC220V/Monitoring:1W, scan:50W |
|
Communication mode |
RS485(communication with field area controller) |
|
The fire location time |
≤30s |
|
Working environment temperature |
-20℃~80℃ |
|
Horizontal rotation range |
0~360°(adjustable) |
|
Vertical rotation range |
-10°~+90° |
|
Jet water mode |
Reciprocating swing after straight injection |
