QWMB12 Impulse Water Mist Fire Gun

Introduction of QWMB12 Impulse Water Mist Fire Gun

QWMB12 Impulse Water Mist Fire Gun ( hereinafter referred to as the water spray fire monitor ), with its unique technology and safety, reliable and convenient operation, compared with similar fire extinguishing equipment energy .saving 1 / 3 efficiency. The water mist fire monitor with low working pressure, has the advantages of compact structure, light, to make a knapsack, convenient in different environment reach fire-fighting purposes, is a new generation of fire extinguishing device.
Water mist fire monitor is the use of pressure water, formation water mixed with certain pressure fire extinguishing media, can''t fire extinguishing purposes (see chart ), especially applicable to save city residential area, tunnel, bazaar, high road, high-rise buildings, vehicles and other fires, especially in the initial stage of fire fighting and rescue effect in the process of the apparent.

Parameters of QWMB12 Impulse Water Mist Fire Gun

Test Item			Standard	Results
specifications	Gas cylinder	Working volume(L)	4	4
		Nominal pressure(MPa)	30±1	30.0
	Storage bucket	Working volume(L)	15.0±0.5	15.0
		Wirking pressure(m)	0.7~0.9	0.75
	extinguishant	fire-extinguishing medium	water extinguishing agent	water extinguishing agent
	Tube	Pipeline length(m)	≥1	1.5
		infusion tube length(m)	≥1	1.5
	Safety valve	Storage bucket safety valve opening pressure(MPa)	1.1~1.2	1.15
		Pressure regulator safety valve opening pressure (MPa)	1.1~1.2	1.15
	Reductor	Input pressure range (MPa)	3~30	3~30
		Output pressure (to the water bucket)Mpa	0.7~0.9	0.75
		Output pressure(to spray injector)Mpa	0.7~0.9	0.75
	Weight (full fire extinguishing agent and compressed air)(kg		≤35	33.5
Spraying and fire extinguishing performance	DC / spray continuous injection time (s)		≥60/≥60	DC 60 Spray65
	DC / spray distance (m)		≥10/≥5	DC 14 Spray7.0
	extinguishing property		4A	Can be put out 4A
			34B	Can be put out34B

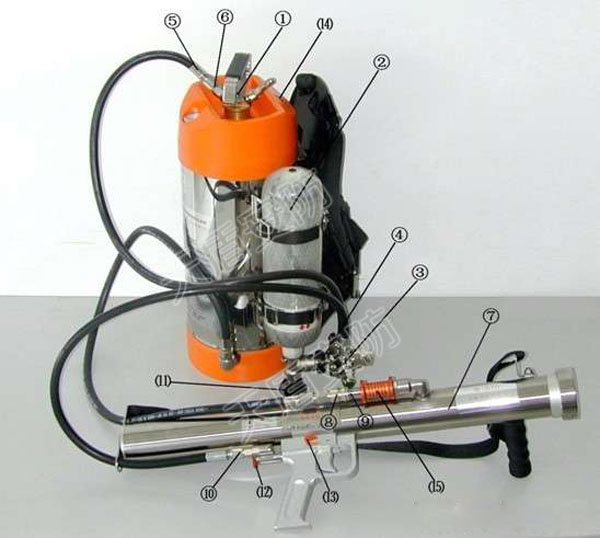

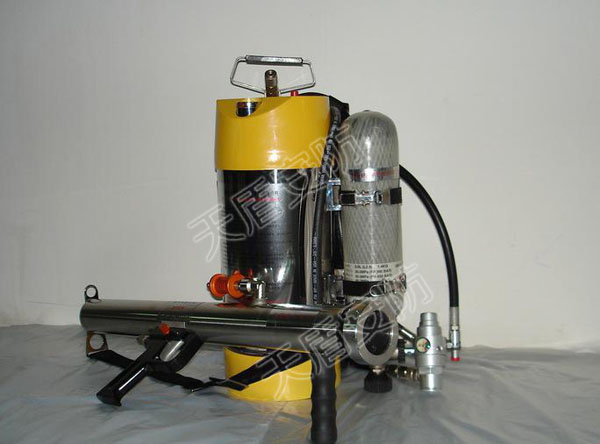

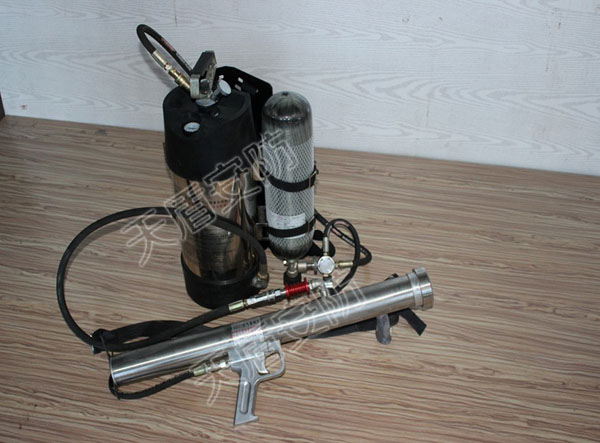

Pictures of QWMB12 Impulse Water Mist Fire Gun
