Hanging heptafluoropropane fire extinguishing equipment (hereinafter referred to as the fire extinguishing equipment) there are three different types according to the requirements of use: Temperature
Contact Us Product CenterHanging heptafluoropropane fire extinguishing equipment (hereinafter referred to as the fire extinguishing equipment) there are three different types according to the requirements of use:

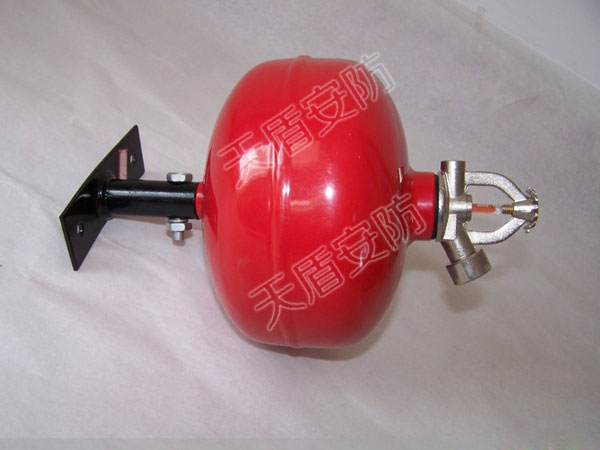

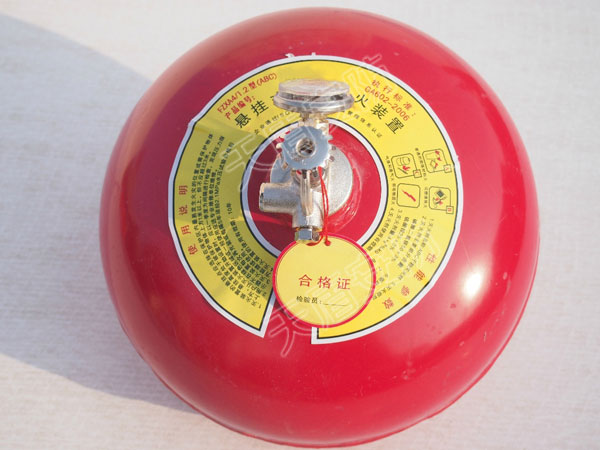

Temperature sensing starting (automatic) type - single use device, consists of cylinders (including storage cylinders, nozzles, temperature sensing glass ball, and pressure gauge) and suspension brackets (support).
| CAPACITY | 6KG AUTO ABC |
| CYLINDER SIZE | D250*H260mm |
| THREAD | M30*1.5 |
| BOTTOM SHAPE | Round |
| THICKNESS | 1.2mm |
| VALVE | M30*1.5, nickel plating sprinkler valve 68° |
| GAUGE | 23mm burden gauge,thread M10*1-12.5 |
| HOSE | NONE |
| BOTTOM BRACKET | Electroplating ring M10*1 |
| PAINTING POWDER | 7325 RED |
| PACKING | 27*27*37cm |
| PCS/CTN | 1PC/CTN |
| G.W | 8.8kg |
| WORK TEMPERATURE | +5°C ~ +55°C |
| WORK PRESSURE | 14Bar |
| TEST PRESSURE | 27Bar |
| FIRE CLASS | ≥14B |
| DISCHARGE TIME | ≤ 9s |
| DISCHARGE RANGE | ≥ 3m |
| PROTECTION RADIUS | ≥0.94m |
