Oxygen Breathing Apparatus

Oxygen Breathing Apparatus

Date:2016-03-08     Label:

Apparatus

Oxygen Breathing Resuscitator

Portable Oxygen Breathing Apparatus

Oxygen breathing apparatus for mining escape self-contained rescuer

Contact Us Product Center

Oxygen Breathing Apparatus

Introduction

Introduction of Oxygen Breathing Apparatus

Oxygen breathing apparatus for mining escape self-contained rescuer

Parameter of Oxygen Breathing Apparatus

Respiratory volume  30L / min
Exhalation resistance  ≤ 600Pa
Inspiratory resistance > 0
Quantitative oxygen supply  1.6 ± 0.1L / min
Automatic supply of oxygen > 100L / min
Dynamic supply of oxygen > 100L / min
Automatic supply valve opening pressure  50-245Pa
Inhalation of carbon dioxide concentration  <1%
Inspiratory oxygen concentration > 21%
Alarm alarm pressure  4 ~ 6MPa
Alarm time  30 ~ 60S
Sound level  ≥ 80db
Effective protection time  4h (moderate labor intensity)
Oxygen bottle rated working pressure  20MPa
Oxygen bottle volume  2.4L
Amount of oxygen  500L
Fill the amount of calcium hydroxide  2.1Kg
Dimensions  560mm × 370mm × 160mm
Quality  10Kg (without calcium hydroxide, oxygen)
Storage tank (m3) 1 × 2
Grouting outlet pressure (MPa) 1.2
Grouting flow rate (L / min) 130

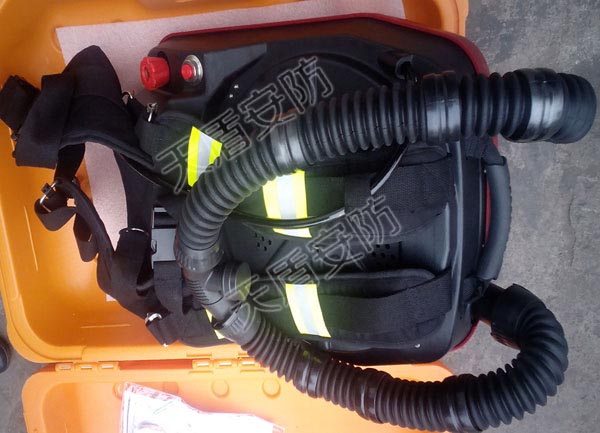

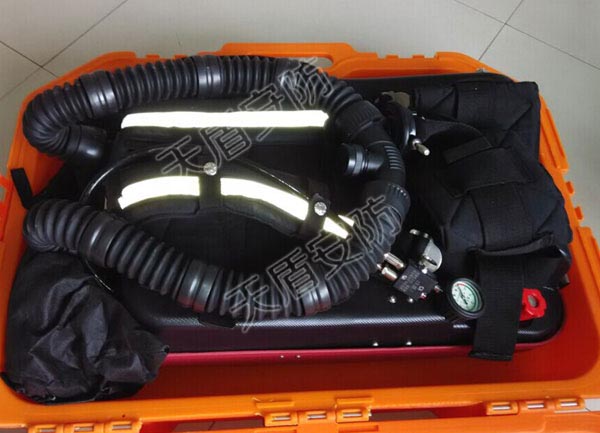

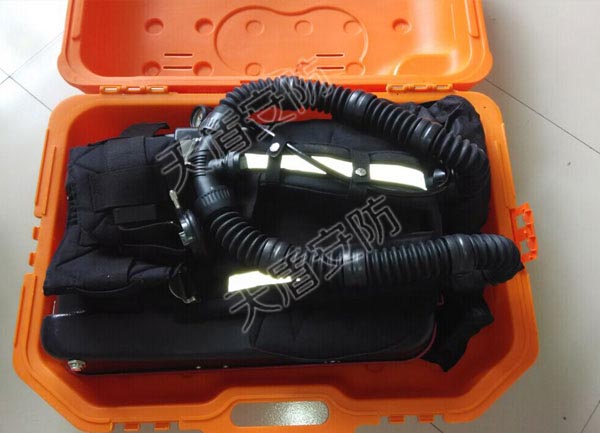

Pictures of Oxygen Breathing Apparatus

Oxygen Breathing Apparatus


Oxygen Breathing Apparatus


Oxygen Breathing Apparatus


PHOTOS OF

Oxygen Breathing Apparatus
