Isolated Negative Pressure Oxygen Breathing Apparatus

Isolated Negative Pressure Oxygen Breathing Apparatus

Date:2016-03-08     Label:

Oxygen Respirator

Breathing Apparatus

Oxygen Breathing Apparatus

Isolated Negative Pressure Oxygen Breathing Apparatus Respiratory airflow alternately run for the positive and negative pressure, breathing resistance is small, pressure reducer, counterflow.

Contact Us Product Center

Isolated Negative Pressure Oxygen Breathing Apparatus

Introduction

Introduction of Isolated Negative Pressure Oxygen Breathing Apparatus

Isolated Negative Pressure Oxygen Breathing Apparatus Respiratory airflow alternately run for the positive and negative pressure, breathing resistance is small, pressure reducer, counterflow.
Assembling of oxygen for quantitative oxygen vavle, atomatic supply vavle, manual supply vavles, pressure reducing vavles, safety valves, emergency switch focus to design into one, compact, easy disassembly and maintenance.
Equipped with a row of saliva in the mouth with the pump, the saliva can always be ruled out.

Parameter of Isolated Negative Pressure Oxygen Breathing Apparatus

The main technical parameters:
(1) Oxygen bottle of 19.61 Mpa 200L oxygen storage
(2) Oxygen supply ration: 1.3~1.1L/min
(3) Automatic exhaust pressure: +196~294Pa
(4) Automatic supply pressure: -147~-245Pa
(5) Effective use time: 2h
2. Dimensions and weight:
(1) Weight: (including oxygen and absorbent) no more than 7kg
(2) Overall dimension: no more than 345*345*190 mm

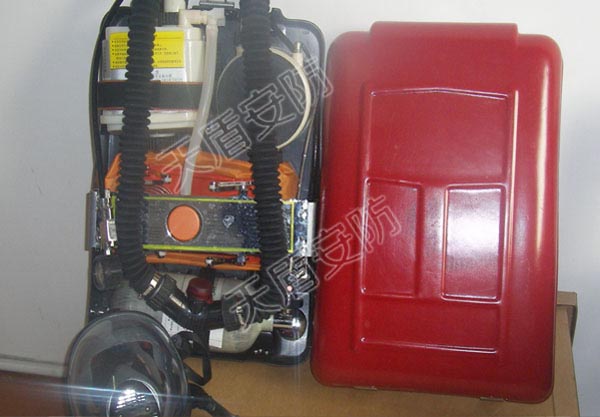

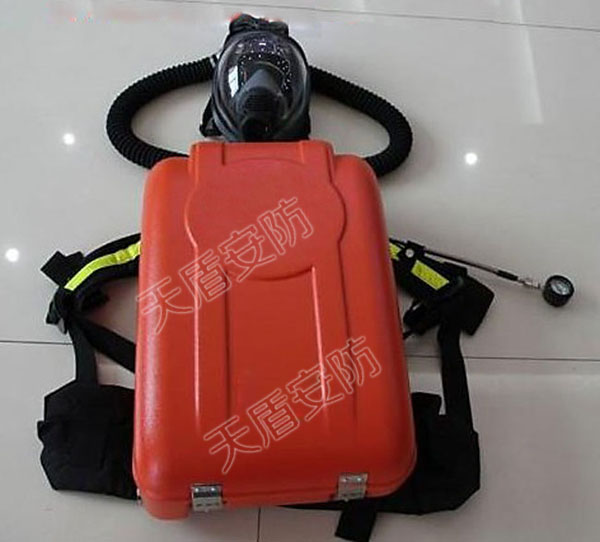

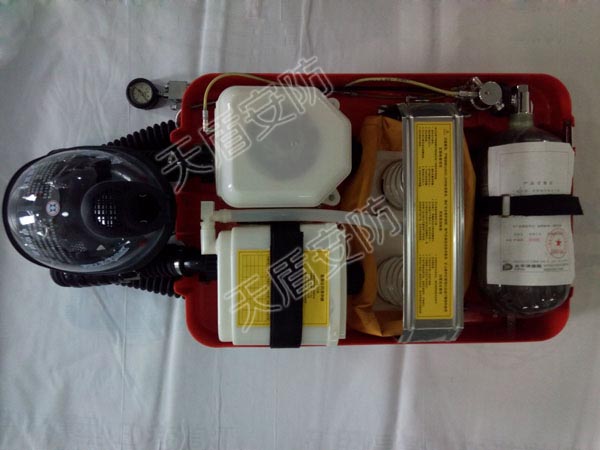

Pictures of Isolated Negative Pressure Oxygen Breathing Apparatus

Isolated Negative Pressure Oxygen Breathing Apparatus


Isolated Negative Pressure Oxygen Breathing Apparatus


Isolated Negative Pressure Oxygen Breathing Apparatus

PHOTOS OF

Isolated Negative Pressure Oxygen Breathing Apparatus
