AJ12B Oxygen Breathing Apparatus Detector Measurement range of water gauge: -1100~1200Pa Dividing scale of water gauge: 10Pa oxygen breathing apparatus detector
Contact Us Product Center
AJ12B Oxygen Breathing Apparatus Detector Measurement range of water gauge: -1100~1200Pa Dividing scale of water gauge: 10Pa
oxygen breathing apparatus detector

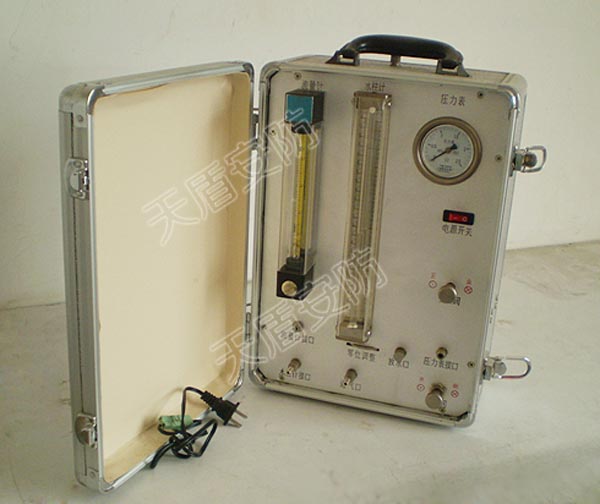

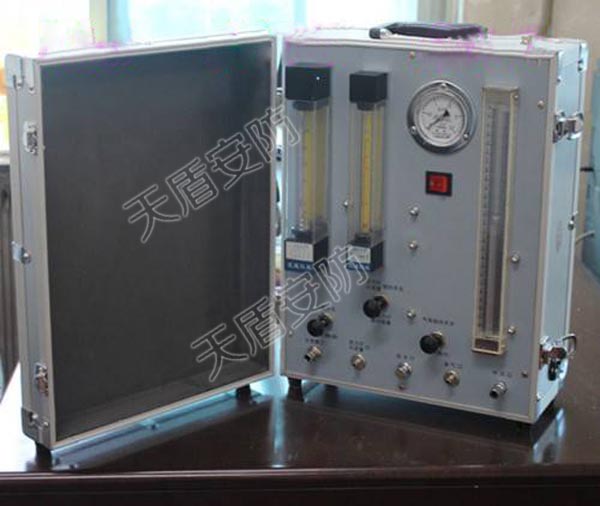

Product features:The instrument is set based on the condition that the air change volume of automatic lung is 1L/min to measure automatic inflation pressure and air exhaust pressure.The instrument uses vacuum meter and flow meter to measure inject negative pressure value and flow.
| Water column of the scale division; | |
| No column measuring range | -1100 ~ 1200Pa |
| Pump pumping rate | 8 ~ 12L / min |
| Rotor flowmeter measurement range | 0.35 ~ 3.5L / min |
| Rotor flowmeter accuracy grade | 4 |
| Oxygen pressure gauge measuring range | 0 ~ 2.5MPa |
| Atmospheric pressure gauge accuracy level | 2.5 |
| Air pump power supply voltage, AC | 200V |
| Quality | 11Kg |
| Overall dimensions LWH | 380 × 264 × 150mm |
