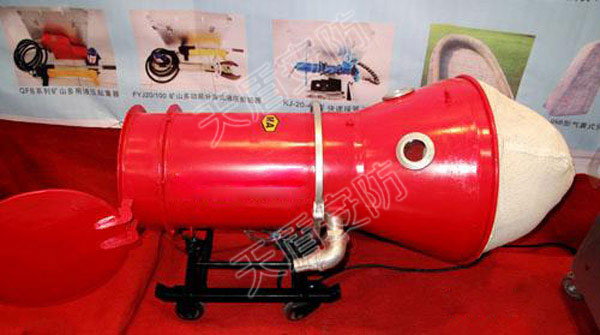

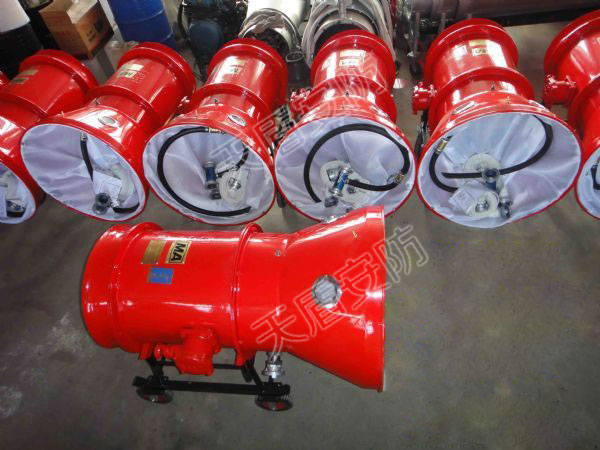

BGP200 high expansion foam extinguishing device is design to extinguish the fire that happened in mining roadway, driven by high pressure, can keep away from the fire disaster in the tunnel operation
Contact Us Product CenterBGP200 high expansion foam extinguishing device is design to extinguish the fire that happened in mining roadway, driven by high pressure, can keep away from the fire disaster in the tunnel operation, bubble distance up to 300 meters around roadway in advance, after the fire restoration work is easy, can reduce the fire time, at the same time with the new "bubble driven pressure gauge can be observed at any time bubble emission is normal. Fan motor, water pump motor 380V/660V can be used in different voltages in the underground, is a new breakthrough in the field of high foam technology equipment, but also a unique product of the new technology.
|
Model No. |
BGP-200 |
BGP-400 |
|
Foam volume |
180-200m3/min |
350-400m3/min |
|
Spray volume |
260-280L/min |
360-440L/min |
|
Air Volume |
240-260m3/min |
480-510m3/min |
|
Foam expansion |
500-800 |
500-800 |
|
Total power |
11KW |
14KW |
|
Voltage |
380v/660v |
380v/660v |
|
Overall dimensions |
1.58*0.958*0.65m |
1.42*1.0*0.8m |
|
Foam conveying distance |
300m |
300m |
|
Weight |
175KG |
260KG |
