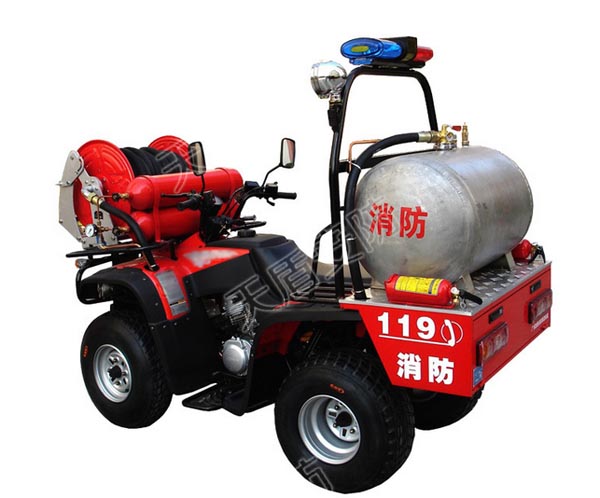

250cc Water Mist Fire Fighting ATV
Contact Us Product Center| Engine Type | 250CC, Single cylinder, 4stroke |
| Cool System | Water Cooled |
| Dimenssion (mm) | 2380*1040*1140mm |
| Wheel Base (mm) | 1170 |
| Displacement (ml) | 249.4 |
| Bore x Stroke | 77 x 64.8 |
| Climbing Ability | less than 40° |
| Drive | Two Wheel Drive (rear wheel) |
| Oil Tank (L) | 12 L |
| Water Tank (L) | 200 L |
| Rated Flow | 10 L / min |
| Work Time | 20 min |
| Rated Spray Pressure | 4-6 mpa |
| Spray Height | 3-6 M |
| Water Hose | 50 M |
| Hydraulic Giant | 1 M |
| Starting Mode ; | Electric Start |
| Fuel | 90# or bigger than 90# gasoline |
| Max suction head | 7 M |
| Max. Power (kw/r/min) | 13 kw / 7000 r / min |
| Max. Torque (N.m/r/min) | 21 N.M / 3000 r / min |
| Max. Speed (km/h) |
less than70 |
| Transmission System | shaft drive |
| Gearshif | 5-speed gearshift |
| Battery | 12V/14Ah |
| Fr. Tyre Size | AT23*7-10/20Kpa |
| Rr.Tyre Size | AT22*10-10/25Kpa2.75-17 |
| Fr./Rr. Brakes | Disk/Drum |
| Reverse Gear | With reverse gear |
| Ignition Model | CDI |
| Dry Weight (kg) | 385 |
| 1. Extinguish Material: Water Mist, can avoid the secondary damage | |
| 2. Fit for: solid (Also fit for the liquid, gas,melt-able solid condition with equipment along with the motorcycle) | |
| 3. High efficiency, Strong maneuverability | |
| 4. Strong climbing ability | |
| 5. Smart body, fit for many district, such as street/forest/sloping fields etc. | |
| OTHER ACCESSORIES | |
| Dry powder extinguisher (2 X 4 Kg) | Underground fire hydrant special spanner |
| Rear alarm lamp | Fire hydrant special wrench on the ground |
| Fire axe | Tool kit |
| Search light | |
