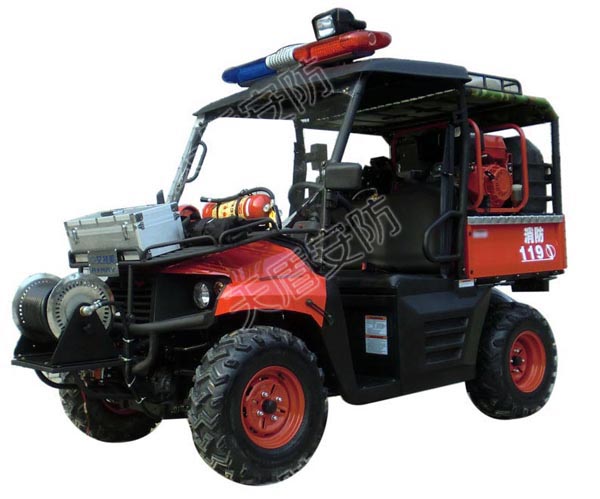

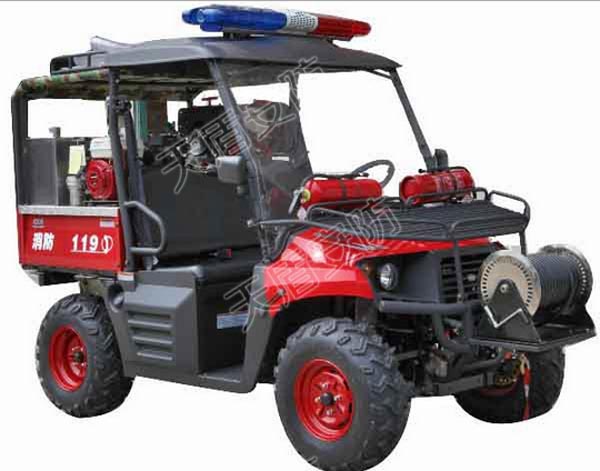

ATM400 Fire Fighting Vehicle 4x4 ATV is a all terrain fire fighting atv with water mist systems that widely used for safety reasons. ATM400 Fire Fighting Vehicle 4x4 ATV has superior off-road performa
Contact Us Product CenterATM400 Fire Fighting Vehicle 4x4 ATV is a all terrain fire fighting atv with water mist systems that widely used for safety reasons. Left four-wheel drive, any more rugged slippery road can use the electric control differential lock function, electric winch.
ATM400 Fire Fighting Vehicle 4x4 ATV has superior off-road performance, whether in the rugged mountain or in a narrow street, as long as the body can access the space will be able to quickly and flexibly fire fighting and rescue.
| Length×Width×Height | 3018X1543X1950(mm) |
| Engine Model | OneCylinder,4-Stroke,Water and Oil Cooling, SOHC |
| Displacement | 694.6ml |
| Max Output Power | 30kw |
| Wheelbase | 1148/1085mm |
| Turning radius | 3277mm |
| Ignition Type | ECU |
| Tire Size(Front) | AT26×9-14 |
| Tire Size(Rear) | AT26×11-14 |
| Start Type | Electric |
| Total vehicle weight | 1150kg |
| Max Speed | 55km/h |
| Parking angle | ≥10.2° |
| Braking Length | ≤7m |
| Tank volume | 200L |
| Mix water rated pressure | 9MPa |
| Spraying distance | ≥12m |
| Effective spraying time | 13min |
| Class A fires | 4A |
| Class B fires | 34B |
