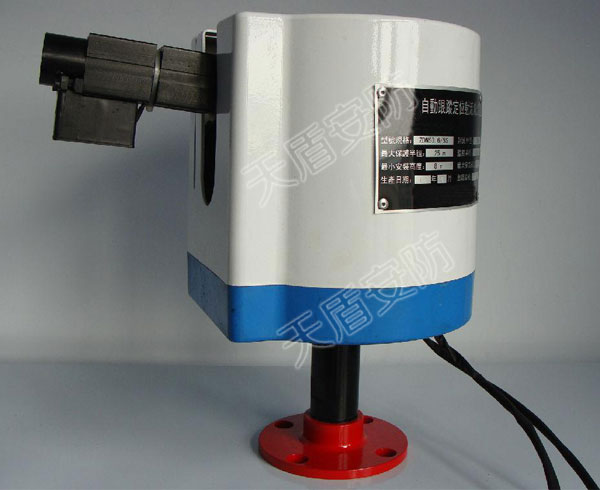

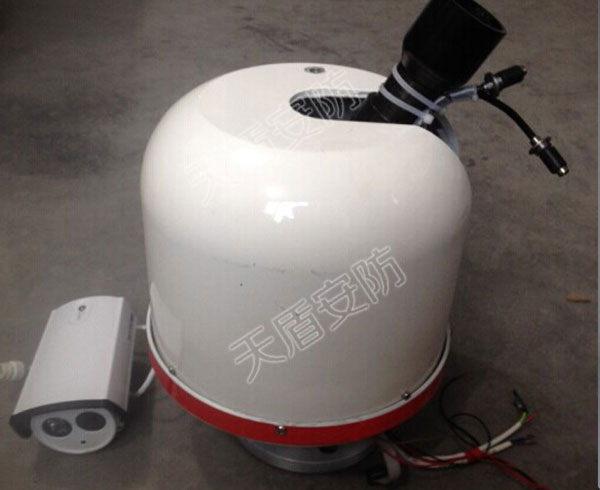

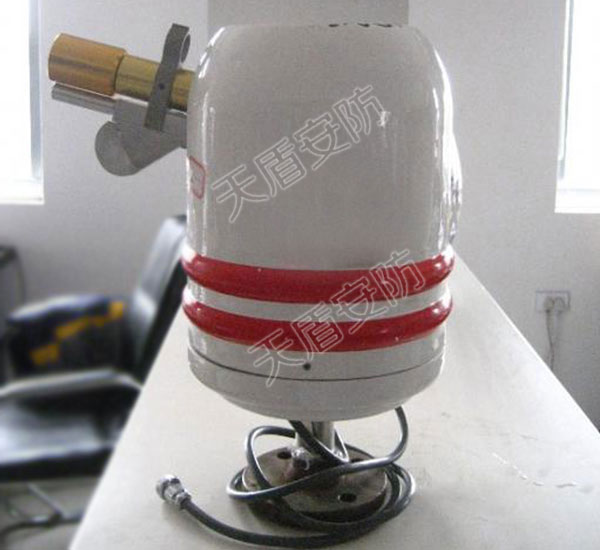

Automatic Intelligent Firefighting Water Monitor is the infrared sensor technology, signal processing communication technology, control technology, computer technology and mechanical technology organi
Contact Us Product CenterAutomatic Intelligent Firefighting Water Monitor is the infrared sensor technology, signal processing communication technology, control technology, computer technology and mechanical technology organically unifies in together, can automatically monitor the fire within the scope of protection.
Once the fire happens, fire extinguishing device immediately start, Intelligent scanning of fire source in horizontal and vertical direction, after determine fire two range, the central controller issued a directive, fire alarm signal is sent out, at the same time start the water pump, open the valve, fire extinguishing device for aiming put out the fire, after put out the fire, the central controller issued a directive stop jetting water. If there is a new fire, the fire distinguish device will repeat the process, until all the fire was put out to return to the monitoring state. 5L/s~10L/s full automatic fire monitor water jet form columnar water jet, for range, large scope of protection, extinguishing ability is very strong.
|
Radius of Protection |
30m |
35m |
60m |
|
Water Jetting Flow |
5L/s |
10L/s |
30L/s |
|
Overall dimensions (LXWXH) |
400mmx380mmx450mm |
400mmx380mmx450mm |
582mmx320mmx310mm |
|
Weight |
8KG |
9KG |
17KG |
|
Interface diameter |
DN32 |
DN32 |
DN80 |
|
Installation height |
4-30m |
4-30m |
6-30m |
|
Rated working pressure |
0.6Mpa |
0.6Mpa |
0.6Mpa |
|
Max. Working pressure |
1.0Mpa |
1.0Mpa |
1.0Mpa |
|
Voltage/Power |
AC220V/Monitoring:1W, scan:50W |
AC220V/Monitoring:1W, scan:50W |
AC220V/Monitoring:1W, scan:50W |
|
Communication mode |
RS485(communication with field area controller) |
RS485(communication with field area controller) |
RS485(communication with field area controller) |
|
The fire location time |
≤30s |
≤30s |
≤35s |
|
Working environment temperature |
-20℃~80℃ |
-20℃~80℃ |
-20℃~80℃ |
|
Horizontal rotation range |
0~360°(adjustable) |
0~360°(adjustable) |
0~360°(adjustable) |
|
Vertical rotation range |
-10°~+90° |
-10°~+90° |
-70°~+90° |
|
Jet water mode |
Reciprocating swing after straight injection |
Reciprocating swing after straight injection |
Reciprocating swing after straight injection |
