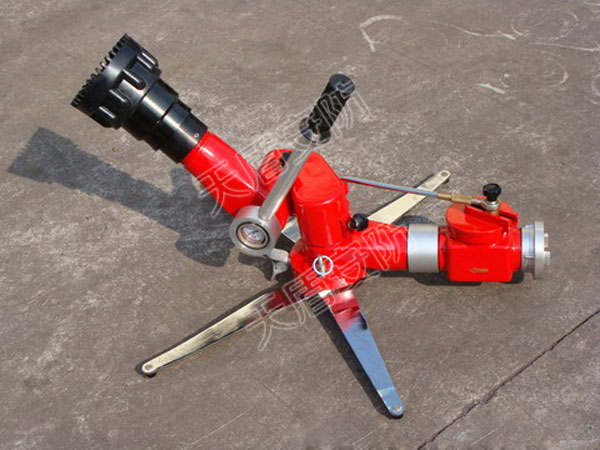

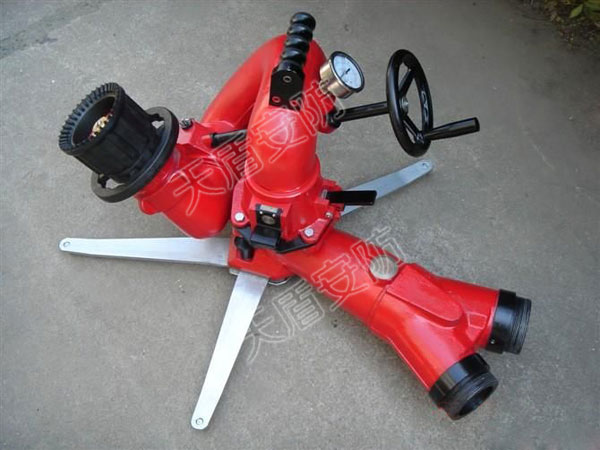

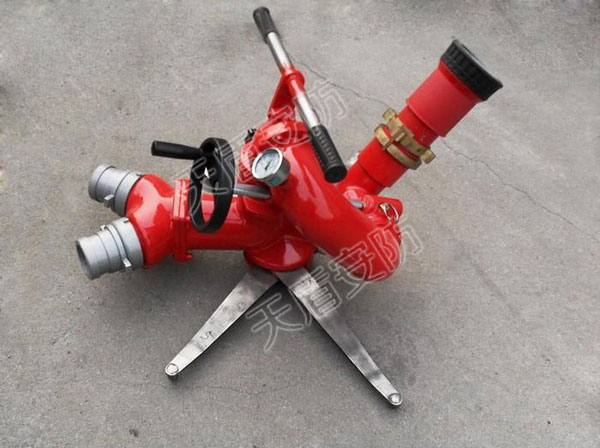

Portable Water Cannon For Fire Suppression System can be operated by one firefighter and used to deliver water or foam from outside immediately to area of fire.
Contact Us Product Center
A foam gun can be found fitted to fireboats and fire trucks using for manual fire fighting. Portable Water Cannon For Fire Suppression System can be operated by one firefighter and used to deliver water or foam from outside immediately to area of fire.
Portable Water Cannon For Fire Suppression System can be used to connect threaded coupling nozzle and fire hose nozzle. Through fire pressure, foam inhale air to produce air foam. Air foam gun composes of tube, gun, body, ball valve, pipette and KY 65 threaded coupling nozzle. It''s used for put out three kinds of liquid fire or put out general solid fire.
The air foam fire nozzle is made up of gun barrel , hand wheel , gun body, ball valve,connector. It is portable fire nozzle which can generate and jet air bubble.Using orifice plate to make water speed to make vacuum differential pressure suction foam liquid, and make it mix with air injection.
The air bubble gun performance is good. And it has small size, light body and flexible function, which is easy to operate. So it''s widely used in all kinds of fire extinguishing.
|
Water Flow Rates |
20L/S,30L/S,40L/S,50L/S,60L/S,70L/S,80L/S |
|
Jetting Range |
From 48 meters to 80 meters,it depends on the working pressure |
|
Working Pressure |
0.8 Mpa,0.9Mpa,1.0Mpa,1.2Mpa |
|
Connection type |
Flange type |
|
Body Material |
Stainless Steel 304,Cast iron,Ductile iron |
|
Sealing Material |
NBR |
|
Painting Color |
Red,RAL3000 |
|
Flange Size |
80mm,100mm |
|
Applicable Medium |
Water,Foam,foam mixture,such as AFFF3%,AFFF6% |
|
Updown Turning angle |
>70 degree |
|
Horizontal Turning Angle |
>180 degree |
|
Installation Type |
Fixed type |
|
Working Type |
Manual type |
|
Manufacture Standard |
GB50338-2003 |
|
Model Number |
PS |
