Introduction

Introduction of Manual Fire Fighting Water Gun

Manual Fire Fighting Water Gun is a fire extinguishing water tool, with its connection with the water will be injected with dense water. With a long range, the advantages of large water.

Classification and Model of Manual Fire Fighting Water Gun

1, according to the working pressure range, Manual Fire Fighting Water Gun is divided into:

A) low pressure water gun (0.2MPa-1.6MPa);
B) medium pressure water gun (> 1.6MPa-2.5MPa);
C) high pressure water gun (> 2.5MPa-4.0MPa);
2, according to the form of fire, Manual Fire Fighting Water Gun can be divided into:
A) DC water gun;
B) spray water gun;
C) DC spray water gun;
D) multi-purpose water gun;
One of the commonly used Manual Fire Fighting Water Gun is DC and spray water guns.
DC water gun
DC water jet jet water for the column, far range, large flow, strong impact, for the fight against the general solid material fire, and the fire when the auxiliary cooling. Generally can be divided into ordinary DC water gun down switch DC water gun. Switch DC water gun is to increase the ball valve switch and other components can be controlled by the switch flow.
Spray water gun
Spray gun water flow of water guns, fire on the building has a strong fire fighting capacity, but also save live fire equipment, combustible dust and some oil fires and so on.
Multi-purpose water gun
That can be sprayed with DC jet, but also spray mist jet, and some can also spray water curtain, and several water can be replaced with each other, the combination of use, good motor performance, good adaptability to the fire.
Multifunctional water gun
The water gun with a small reaction force, a case of operation, according to the need to adjust the flow of fire and jet state, easy to straighten out the water band twist knot phenomenon and so on.

How to Use Manual Fire Fighting Water Gun?

1, opened the firefly door, remove the water, water gun.
2, check the water and joints are good, if damaged, prohibited to use.
3, to the direction of the fire laying water, pay attention to avoid kink.
4, the water with the fire hydrant connection, the connection button is accurately inserted into the chute, and clockwise tightening.
5, after the connection is complete, at least two operators clenched the water gun, aimed at the water (forbidden to people, to avoid high pressure wounding), another operator slowly open the fire hydrant valve to the maximum, aimed at the fire source spray for fire Until the fire is completely extinguished.
Fire water gun physical map

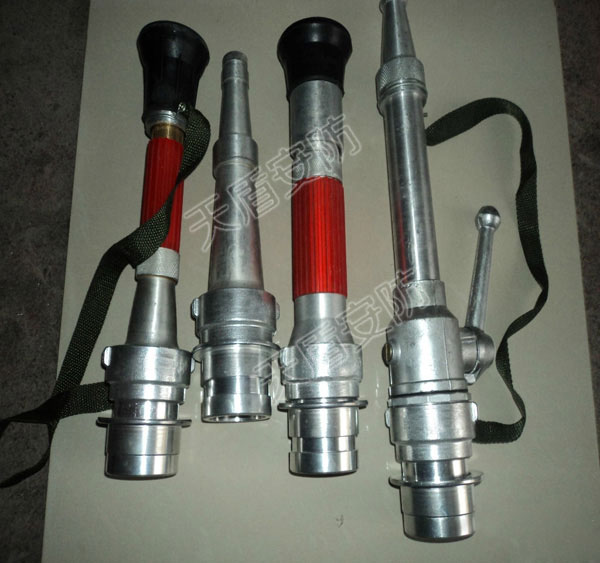

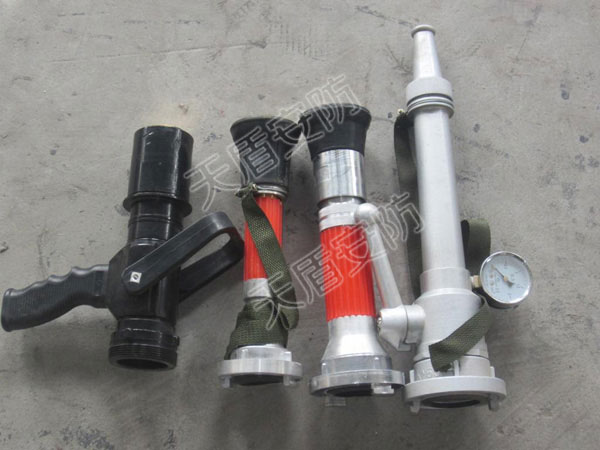

Pictures of Manual Fire Fighting Water Gun

PHOTOS OF

Manual Fire Fighting Water Gun
