Ductile cast iron for outlet cap, brass for double outlet, stainless steel for ball valve, seamless steel for body

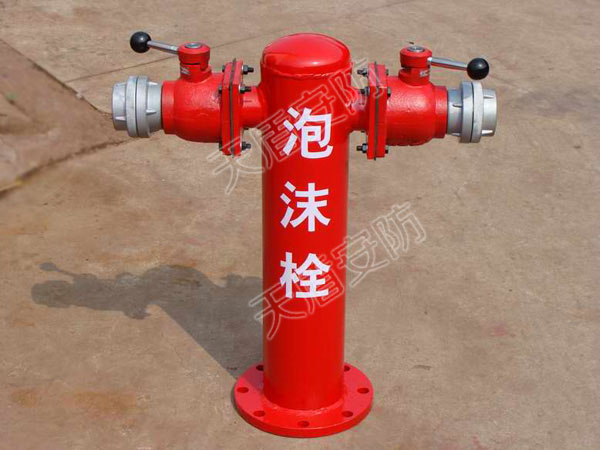

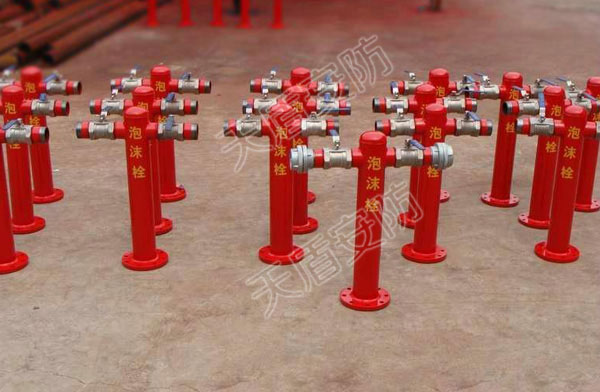

Contact Us Product CenterThe MPS100(150) foam hydrant is one fire engine that is on the line of the mixed foam liquid of the foam fire extinguishing system and offers mixed foam to the foam spraying device.
2 double sealing fire ball valve in KY65(80) and KM65(80) combine the liquid outlet to offer the service to the connect the fire lines to spray the foam mixer.
If we use mobile foam-water gun to put out the fire, the lines can connect 2 liquid outlets at the same time, if we only use one, we can close the other one to keep it from leaking in order to avoid influencing the flow and pressure of the foam liquid. When we use it, we should open the liquid valve after connecting the lines and the injection device and we convenient installation.
Stable and rehable performance, low maintenance cost. So it is used extensively in the petrochemical enterprise, oil storage tank, airfield, warehouse and ports.
| Model | TDAF100 | TDAF150 |
| Inlet liquid path diameter(mm) | 100 | 150 |
| Inlet connection | Flange connection DN100-1.6 | Flange connection DN150-1.6 |
| Outlet diameter(mm) | 65*2 | 80*2 |
| Pipe diameter x width x length | 114*500*730 |
159*500*730 |
