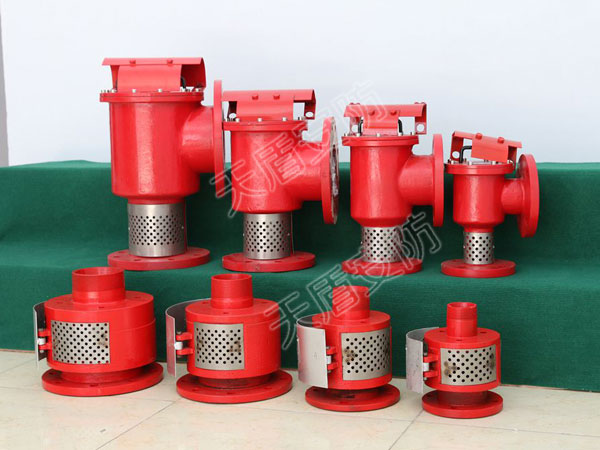

Air foam generator is a kind of fixed installed on the tank, and jet air foam fire extinguishing equipment.Foam proportional mixing device using fixed fire pump supply bubble mixture, flows through th
Contact Us Product CenterAir foam generator is a kind of fixed installed on the tank, and jet air foam fire extinguishing equipment.Foam proportional mixing device using fixed fire pump supply bubble mixture, flows through the pipeline, and through the bubble generator produces a certain pressure, it is exposed to air, forming foam, put out a fire of oils.

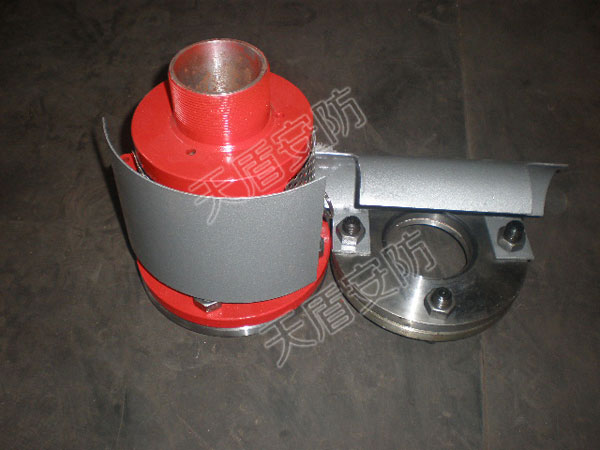

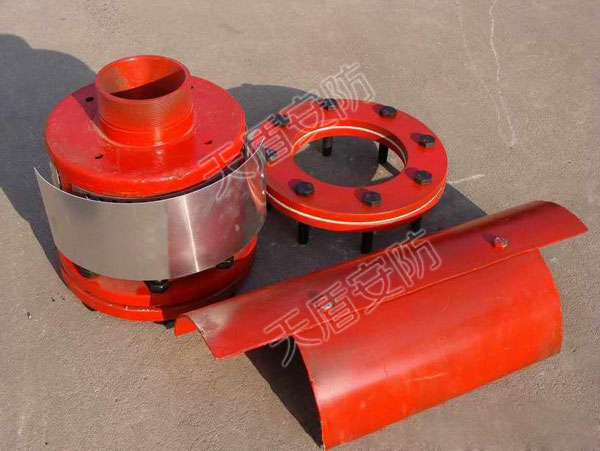

The foam chambers consist of a foam expansion chamber and an integral foam maker with a stainless steel screened air inlet.Each chamber includes an orifice plate, two inlet gaskets, vapor seal assembly, cover gasket, and an outlet gasket.
The foam chambers consist of a foam expansion chamber and an integral foam maker with a stainless steel screened air inlet.Each chamber includes an orifice plate, two inlet gaskets, vapor seal assembly, cover gasket, and an outlet gasket.
| Size |
Working pressure Mpa |
Rate flow mixture liquid(L/S) | Foam expansion |
Flow series (k) |
Inlet flange |
Outlet flange |
Height (mm) |
| PCL4 | 0.3-0.6 | 4 | ≥5 | 107 | 50 | 65 | 155 |
| PCL8 | 8 | ≥5 | 215 | 65 | 80 | 160 | |
| PCL16 | 16 | ≥5 | 429 | 100 | 125 | 185 | |
| PCL24 | 24 | ≥5 | 644 | 125 | 150 | 200 |
