ZSXFD Fire Hydrant Signal Butterfly Valve

Introduction of ZSXFD Fire Hydrant Signal Butterfly Valve

ZSXF D-folder on the butterfly valve is a signal fire-sprinkler systems in support of one of the annex, as ZS sprinkler installation of control valves, valve with a digital display signal to control the spread management in order to avoid misoperation And improve security. Fire is the way to the drain valve control.
Product Standards: GB5135 6-2003 "sprinkler systems part of the Article 6: General valve."
2, model specifications:
3, the main technical parameters:
3.1, the work of the media: water, oil and gas.
3.2, the maximum working pressure: 1.2MPa, 1.6MPa.
3.3, test pressure: 2.4MPa.
3.4, to adapt to the ambient temperature: 0 ~ 65 ℃.
3.5, mode of operation:
a, worm wheel hand operation = ZSXF D-I type;
b, the handle to open soon operate = ZSXF D-II type.
3.6, the switching capacity: DC24V 1A; AC220V 2A;

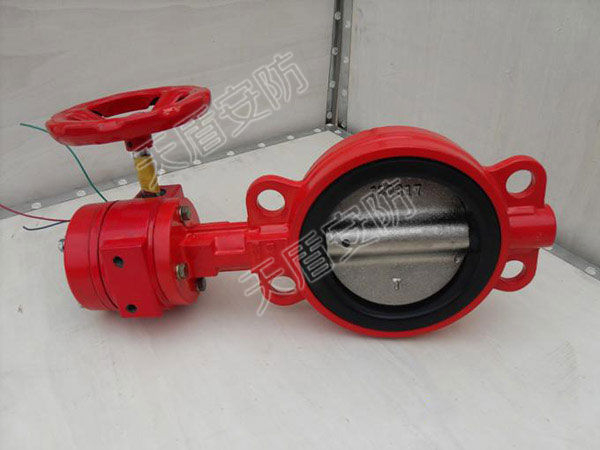

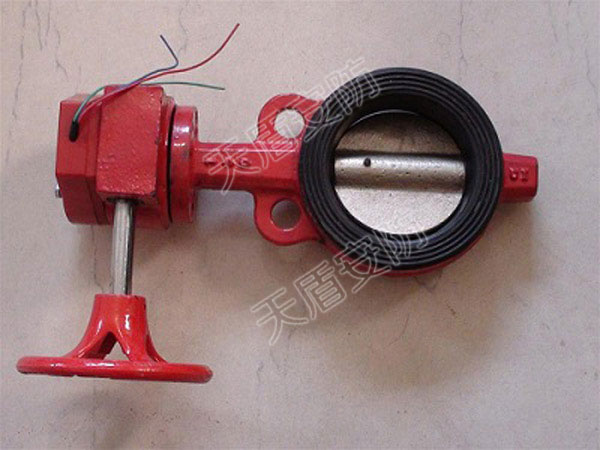

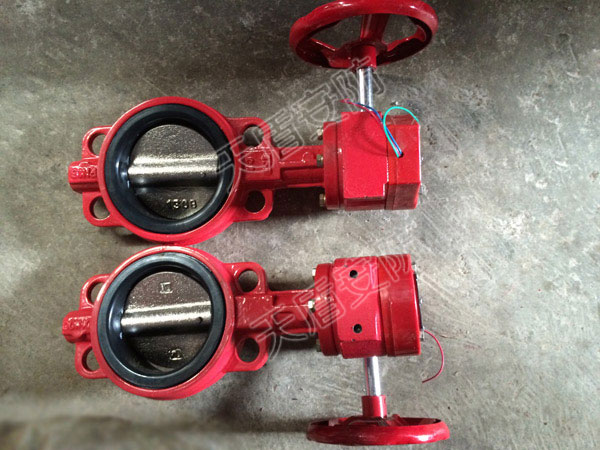

Images of ZSXFD Fire Hydrant Signal Butterfly Valve
