Fire water pump is a special fire service equipment to supply water for high-rise buliding equipped with fire engine pumps, mainly to solve the problem of insufficient water pressure of high-rise buil

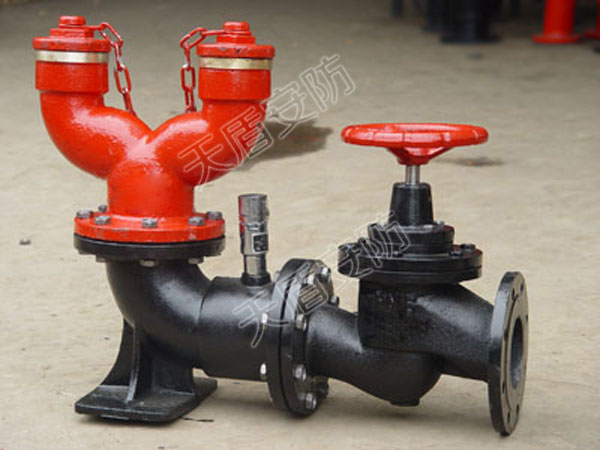

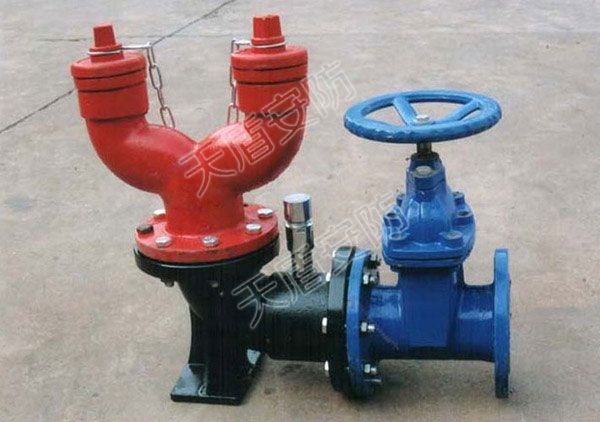

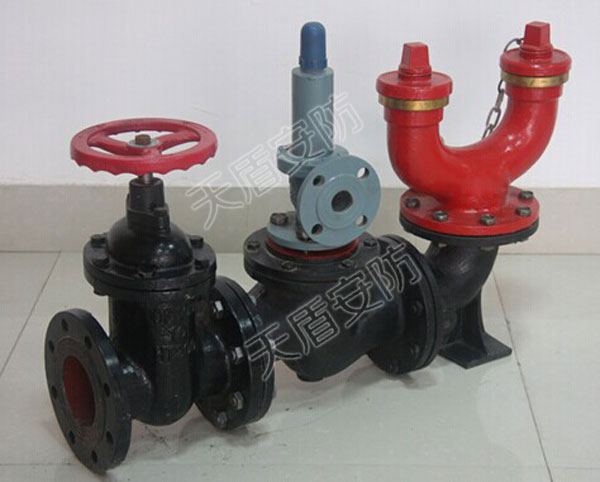

Contact Us Product CenterFire water pump is a special fire service equipment to supply water for high-rise buliding equipped with fire engine pumps, mainly to solve the problem of insufficient water pressure of high-rise buildings and guarantee fire water use of high rise buildings. Its function is, the fire pump truck, with the connection of the adapter, can send water and boost pressure to the fire water supply system in the buildings so that other fire extinguishing device can receiver water source with sufficient pressure.
|
Item NO. |
SQS (Landing Type) |
SQX (Underground Type) |
SQB(Wall-mounted Type) |
SQD(Multi- purpose Type) |
||||||
|
Outlet Nominal Diameter(mm) |
DN 100 |
DN 150 |
DN 100 |
DN 150 |
DN 100 |
DN 150 |
DN 100 |
DN 150 |
||
|
Nominal Work Pressure(MPa) |
1.6 |
1.6 |
1.6 |
1.6 |
||||||
|
Strength Test Pressure(MPa) |
2.4 |
2.4 |
2.4 |
2.4 |
||||||
|
Inlet Nominal Size(mm) |
65*65 |
80*80 |
65*65 |
80*80 |
65*65 |
80*80 |
65*65 |
80*80 |
||
|
Coupling Type |
KWS 65 |
KWS 80 |
KWA 65 |
KWA 80 |
KWS 65 |
KWS 80 |
KWS 65 |
KWS 80 |
||
|
Applicable Medium |
Clean water, foam liquid |
|||||||||
