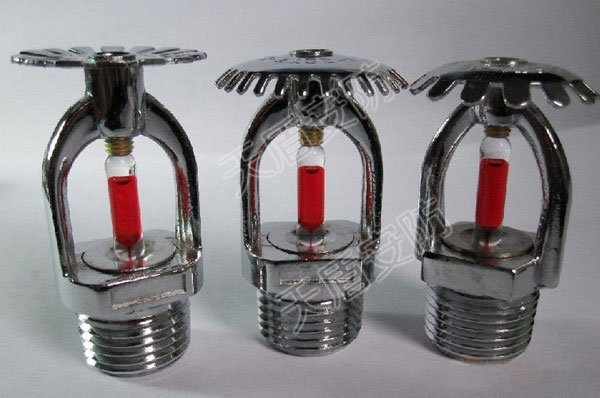

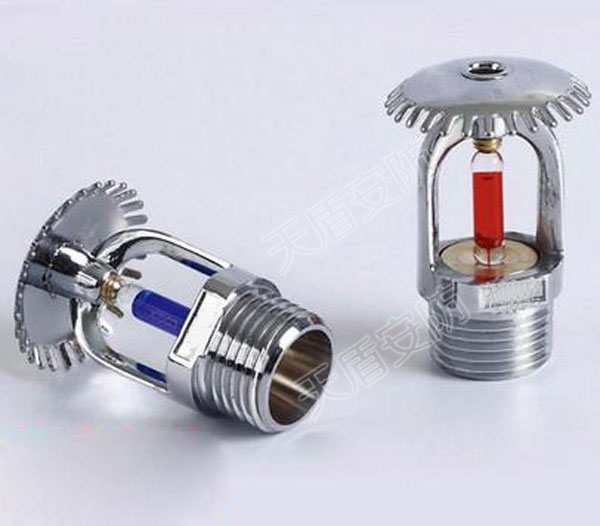

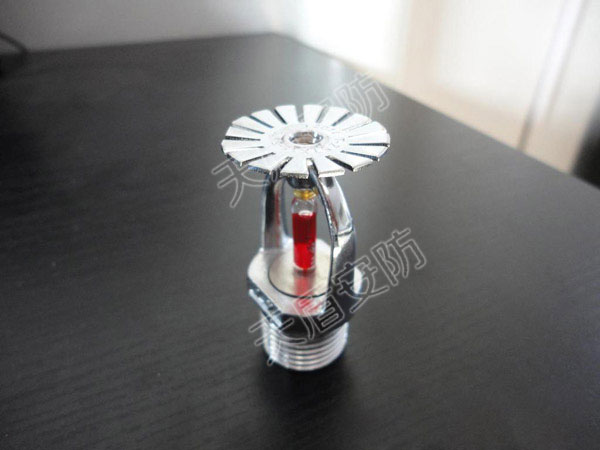

Fire sprinkler

Date:2016-01-08 Label：

fire sprinkler

Widely use in office, school, kitchen and warehouse;

Introduction

1. Widely use in office, school, kitchen and warehouse;

2. Work by temperature sensitive;

3. Vairous types to choose;

4. Easy install and use.

Characteristics and Functions
Model	Fire sprinkler
Material	Brass, chrome plating
Type	UL FM approved brass color upright type ESFR fire sprinkler
Norminal diameter(mm)	15DN or 20DN
Connecting thread	R1/2 or R3/4
Glass bulb color	Red
Temperature rating	68°C
Flow Rate	80±4 or 115±6
Bulb	3mm or 5mm
Response	quick response

Basic Parameters of Fire Sprinkler
Model	Norminal Diameter	Thread	Flow Rate	Style
T-ZSTP	DN15	R1/2	80±4	Upright/Pendent
T-ZSTP	DN20	R3/4	115±6	Upright/Pendent
T-ZSTX	DN15	R1/2	80±4	Pendent
T-ZSTX	DN20	R3/4	115±6	Pendent
T-ZSTZ	DN15	R1/2	80±4	Upright
T-ZSTZ	DN20	R3/4	115±6	Upright
T-ZSTBS	DN15	R1/2	80±4	Horizontal Sidewall
T-ZSTBS	DN20	R3/4	115±6	Horizontal Sidewall
ZSTDY	DN15	R1/2	80±4	Pendent
ZSTDY	DN20	R3/4	115±6	Pendent
