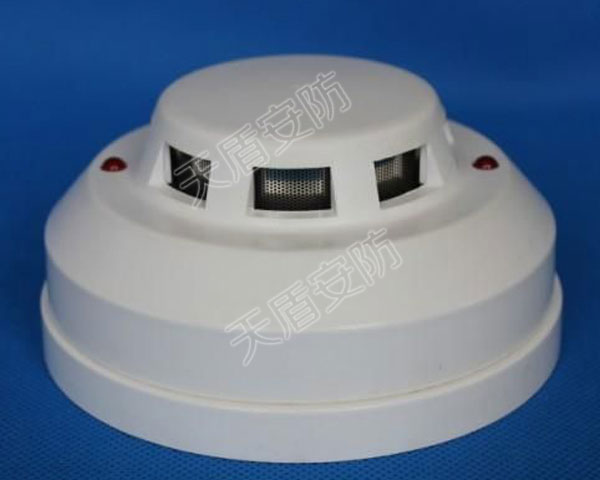

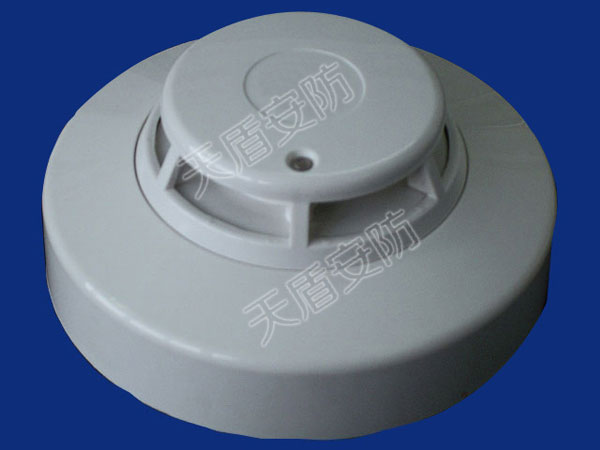

Smoke detector, smoke alarm, fire detector, fire alarm
Contact Us Product CenterSmoke detector, smoke alarm, fire detector, fire alarm
1) SD119 have UL268/521 and EN54-5/7 approvals
2) 2 or 4 wire
3) 5 year limited warranty
4) Advanced detection and discrimination algorithms
5) Easy installation and maintenance
6) Polished low-profile housing design
7) Durable sensor head, no need for replacement
8) SMD circuit board design: Satisfactory quality and reliability guaranteed
9) Integrated heat detector for SD119-2H and SD119-4H models
10) N/C (normal / close) and N/O (normal / open) relay output ways for option
11) AR (auto reset) function for security systems (optional for 4-wire models)
12) Sensor base: Standard and Schottky diode style for option
13) With two LED, more 360 degree visual angle
|
Response Temperature: |
57°C (135°F) |
|
Ceiling Spacing: |
50 foot rating for heat sensor |
|
Reset Voltage: |
less than 1 volt |
|
Alarm Indicator: |
LED continuously emitting red light |
|
Remote Output: |
25 mA max., diode gate |
|
Temperature Range: |
-10°C to 50°C |
|
Permissible Current: |
80mA maximum |
|
Humidity: |
0 to 95% RH, no condensation or icing |
|
Alarm Contact: |
(for 4-wire) NO or NC Operation, Form A: 1.0A@30VDC/0.5A@125VAC |
|
Dimensions: |
100mm (dia) x 46mm (ht) with base |
|
Weight: |
120g/set with base |
