This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.

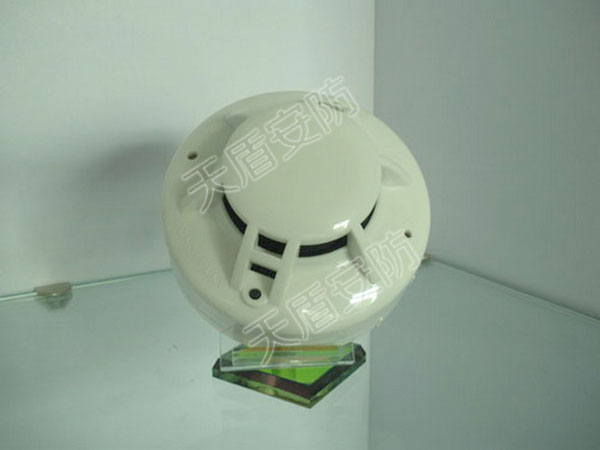

Contact Us Product Center♦The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.

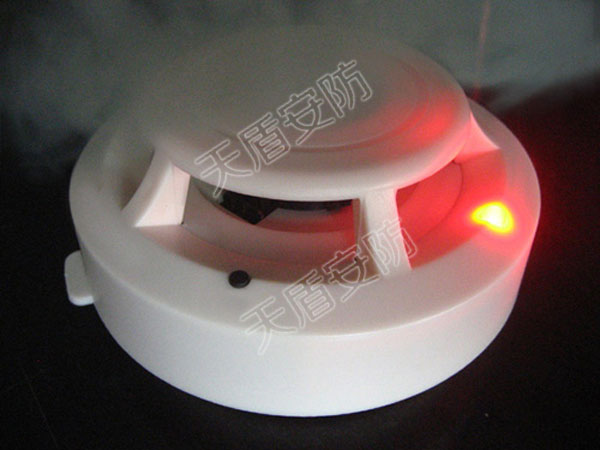

♦Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
♦The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
|
Model No. |
AW-CSD811 |
|
Operating Voltage Range: |
9 to 28 VDC Volts Non-polarized |
|
Standby Current: |
≤120μA @ 24 VDC |
|
Maximum Alarm Current (LED on: ) |
≤15mA @ 24 VDC (1k Ohm current-limiting resistance) |
|
Operating Humidity Range: |
≤ 95% Relative Humidity, Non-condensing |
|
Operating Temperature Range: |
14°F to 122°F (-10°C to 50°C) |
|
Adjustable Sensitivity: |
1.06±.26%/FT |
|
Height: |
48.2mm installed in Base |
|
Diameter: |
99.45mm |
