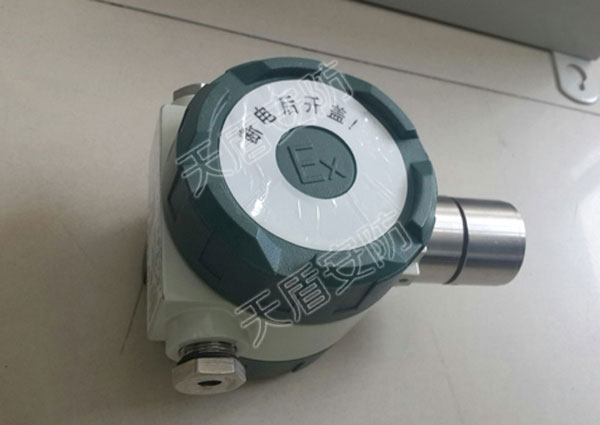

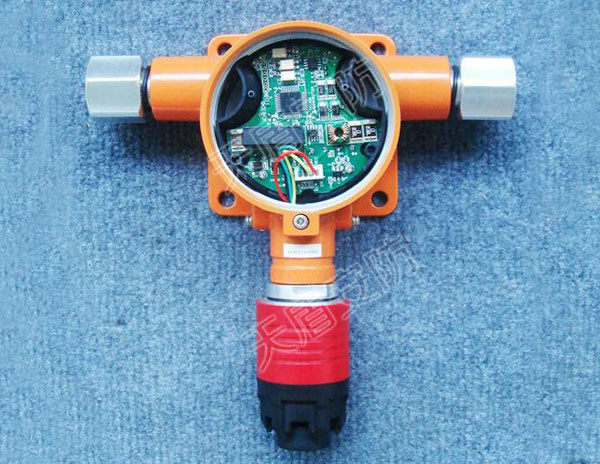

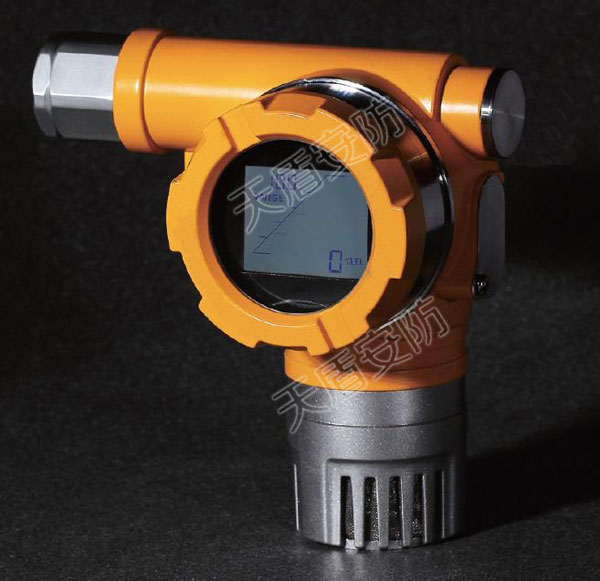

HAE-2000T / HAE-200 / HAE-3000 series gas detector is fixed installation, can detect industry field site combustible gas and toxic gas leak, and use wire connected to the alarm controller.
Contact Us Product CenterHAE-2000T / HAE-200 / HAE-3000 series gas detector is fixed installation, can detect industry field site combustible gas and toxic gas leak, and use wire connected to the alarm controller.
| Performance | |
| Testing gas | flammable gas/ poisonous gas |
| Testing Princeple | catalytic combustion type/ Electrochemical |
| Measurement range | (0%-100%)LEL(flammable gas) & (0-1000)umol(poisonous gas) |
| Accurancey | 3%LEL(flammable gas) 3%FS(poisonous gas) |
| Repeatability | 2% |
| Response time | T90<30S(catalytic combustion type) |
| Electrical characteristics | |
| Power | 24VDC(normal working voltage range:10-30VDC) |
| Power consumption | <2.5W(flammable gas) <1.5W(poisonous gas) |
| Output signal |
three-wire: 4-20mA/ two-wire:4-20mA(poisonous gas) alarm/fault relay:1A 4VDC (three groups) |
| Structural characteristics | |
| Main materail | ADV 12 aluminium alloy |
| Connetion thread | M20*1.5, 1/2NPT inner thread can be optianl |
| Weight | 1.5KG |
| Certificate | |
| EX-proof certificate |
Exd IIC T6 Gb/Ex tD A21 IO66 T80C(flammable gas detector) Exd ib IIC T6 Gb/ Ex tD ibD A21 IP66 T80C(poisonous gas detector) |
| Fire certificate | CCCF |
| Metrological certificate | CMC |
| Executive standard |
GB15322.1-2003,GB3836.1-2010,GB3836.2-2010, GB3836.4-2010,GB12476.1-2013,GB12476.4-2010, GB12476.5-2013 |
| Electrical usage environment | |
| Protection grade | IP66 |
| Temp. range |
-40ºC~70ºC (flammable) -20ºC~50ºC (poisonous) |
| Humidity rang | 10~95%RH (no condensation) |
| Presure range | 86-106KPa |
| Warranty |
1 year |
