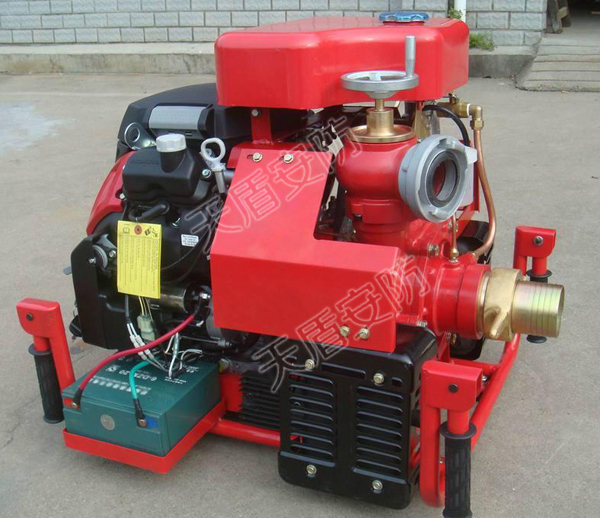

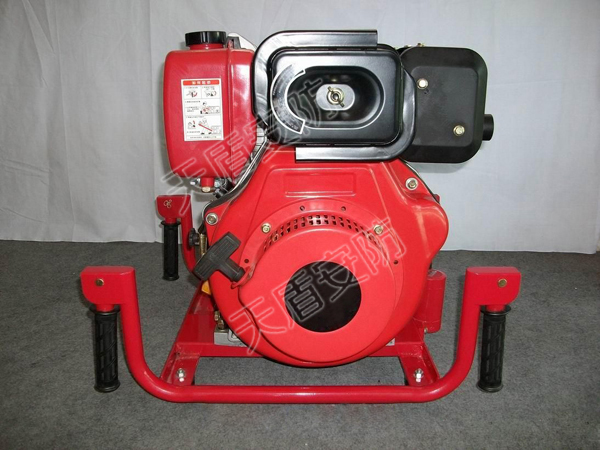

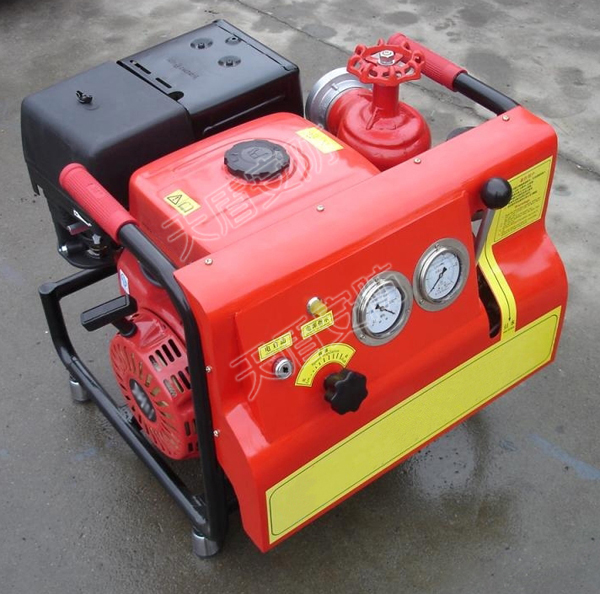

CE certificated diesel engine driven fire pump has features of compact structure, start convenient, fast water, low fuel consumption, light weight and reliable, so that is more suitable for using in t
Contact Us Product CenterCE certificated diesel engine driven fire pump has features of compact structure, start convenient, fast water, low fuel consumption, light weight and reliable, so that is more suitable for using in the narrow roads. It is the ideal equipment for fire extinguishing used in fire brigade, professional fire brigade, forest fire brigade, towns, rural areas, the mining industry and obligation fire brigade.
| Appearance dimension | 565*580*560mm |
| Device weight | ≤77kg |
| Rated capacity | 660L/min |
| Pump head | 65m |
| Out pressure | 0.4Mpa |
| Inlet size | φ65mm |
| Outlet size | φ65mm |
| Dia.of nozzle | φ19mm |
| Type of inlet | Screw type |
| Maximum suction depth | 7m |
| Pump priming time | ≤20s |
| Starting way | Recoil/Electric start |
| Model of engine | 13HP,188FB |
| Pump body | Single stage |
